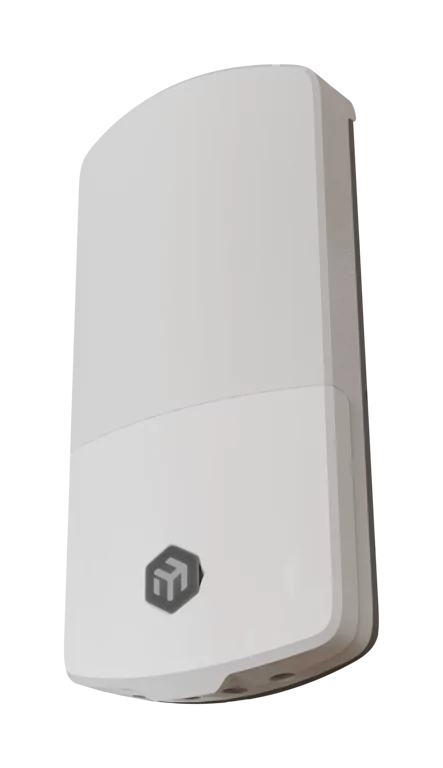

wAP ax LTE7 kit
The new wAP LTE7 kit is an evolution of the popular wAP ac LTE6. Now – with Wi-Fi 6, CAT7 LTE, a stronger ARM platform, and improved antenna gain. The unit comes in our improved next-gen IP66 weatherproof enclosure.
wAP ax LTE7 kit brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environment – like a rural gas station or a bus stop. The updated enclosure enhances durability even further and features a concealed anti-vandal screw behind the MikroTik logo for added security..
Now upgraded with a CAT7 LTE modem, doubled upload speeds, and a more powerful ARM platform, this generation raises the performance bar without changing what people love about wAP or raising the price.
A mighty dual-band, dual-chain (2x2 MIMO) radio ensures strong wireless coverage across your home, yard, or business premises – enhanced by higher antenna gain and a redesigned LTE antenna system for improved signal quality, greater range, and better stability in challenging environments.
Why upgrade to CAT7?
Enhanced Hardware
for Uninterrupted Connectivity and Simple Management

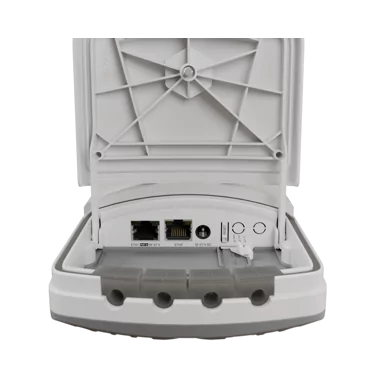

This compact access point is equipped with a modern dual-core ARM CPU and runs on RouterOS v7, ensuring stable internet and excellent VPN performance across your property. The wAP ax LTE7 kit also supports our new CAPsMAN for easy centralized management of multiple devices with just a few clicks. The device features two Gigabit Ethernet ports, with PoE-in on one for flexible powering options. You can also use the standard DC jack – because we believe in giving you options.

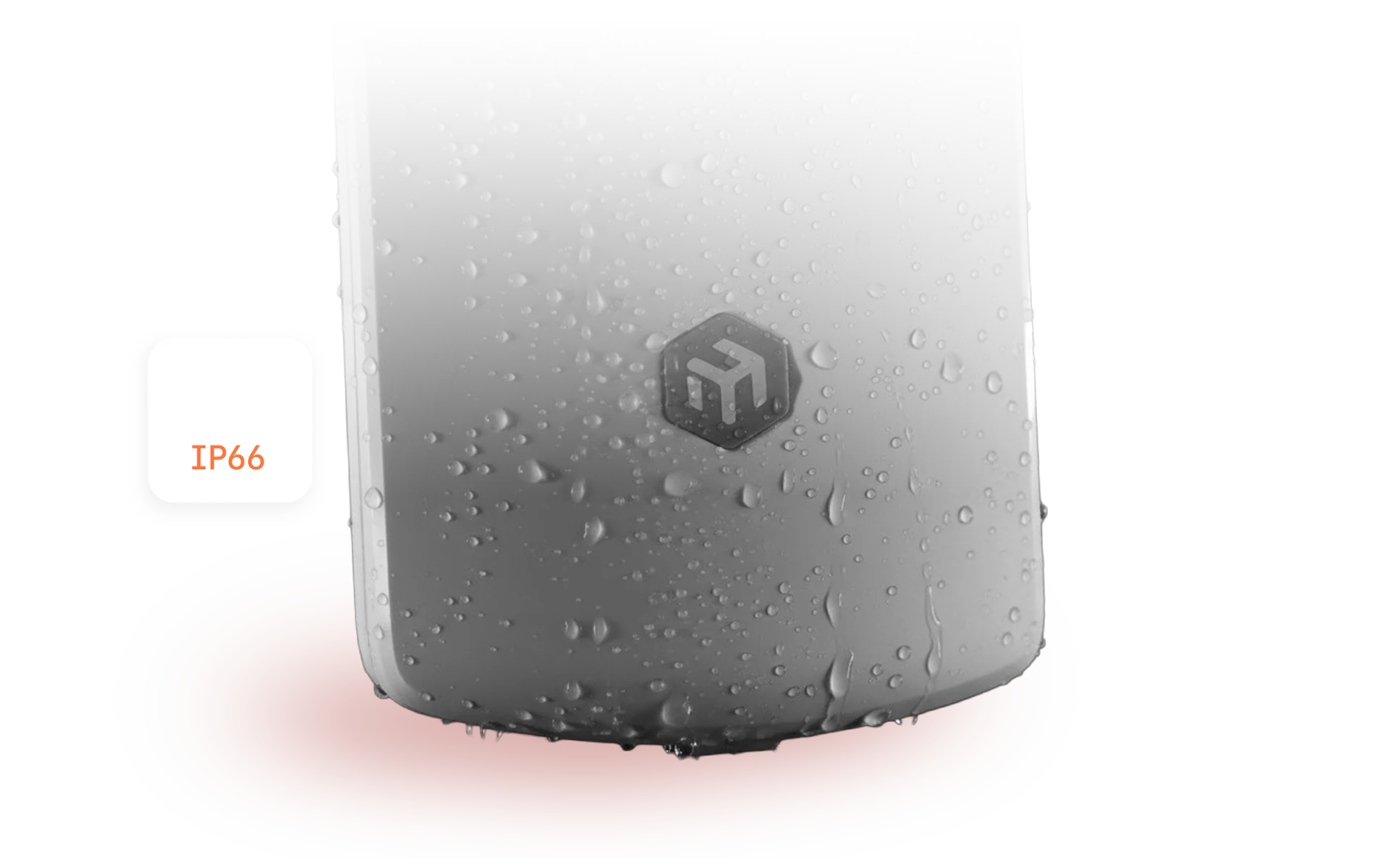

Stealthy Design – Weatherproof and Vandalproof

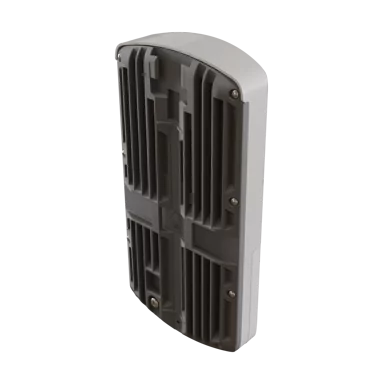

wAP ax LTE7 kit is designed to blend into any environment. Its simple, elegant design doesn’t attract any unwanted attention, making it perfect for busy public spaces or private properties alike. wAP can be securely fixed to any external wall or roof from the inside of the case. A designated indentation at the back of the enclosure marks the drill point for a cable pass-through, enabling discreet and secure wall-mounted installations.
Specification
- Product code wAPGR-5HaxD2HaxD&R11e-LTE7
- Suggested price $169.00
- Architecture ARM 64bit
- CPU IPQ-5010
- CPU core count 2
- CPU nominal frequency 800 MHz
- CPU Threads count 2
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 256 MB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -30°C to 70°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-57 V
- Max power consumption 13 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 18-57 V
- 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
-
3G bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
- LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL 2x2
- MIMO UL 1x1
-
LTE FDD bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
-
LTE TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- TAC 35312597
- Wireless 2.4 GHz Max data rate 574 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz 6.9
- Wireless 2.4 GHz chip model IPQ-5010
- Wireless 2.4 GHz generation Wi-Fi 6
- Wireless 5 GHz Max data rate 1200 Mbit/s
- Wireless 5 GHz Number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz 7
- Wireless 5 GHz chip model QCN-6102
- Wireless 5 GHz generation Wi-Fi 6
- 10/100/1000 Ethernet ports 2
- Number of SIM slots 1 Modem (Micro SIM)
- MiniPCI-e slots 1
- CPU temperature monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Certification CE, EAC, ROHS
- IP 66
| wAPGR-5HaxD2HaxD&R11e-LTE7 | IPQ-5010 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 158.8 | 1928.5 | 412.9 | 1691.2 | 481.2 | 246.4 |
| Bridging | 25 bridge filter rules | 158.4 | 1923.6 | 212.2 | 869.2 | 217.1 | 111.2 |
| Routing | none (fast path) | 158.7 | 1927.3 | 258 | 1056.8 | 467.6 | 239.4 |
| Routing | 25 simple queues | 153.7 | 1866.5 | 168.3 | 689.4 | 169.2 | 86.6 |
| Routing | 25 ip filter rules | 117.3 | 1424.5 | 121 | 495.6 | 116.3 | 59.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
