LHGG LTE7 kit
The new LHGG LTE7 kit upgrades the popular LTE6 model with a CAT7 modem and doubled upload speed, while keeping the proven 17 dBi long-range antenna and rugged grid design – now at a significantly better price.
Wherever life takes you,
the signal follows

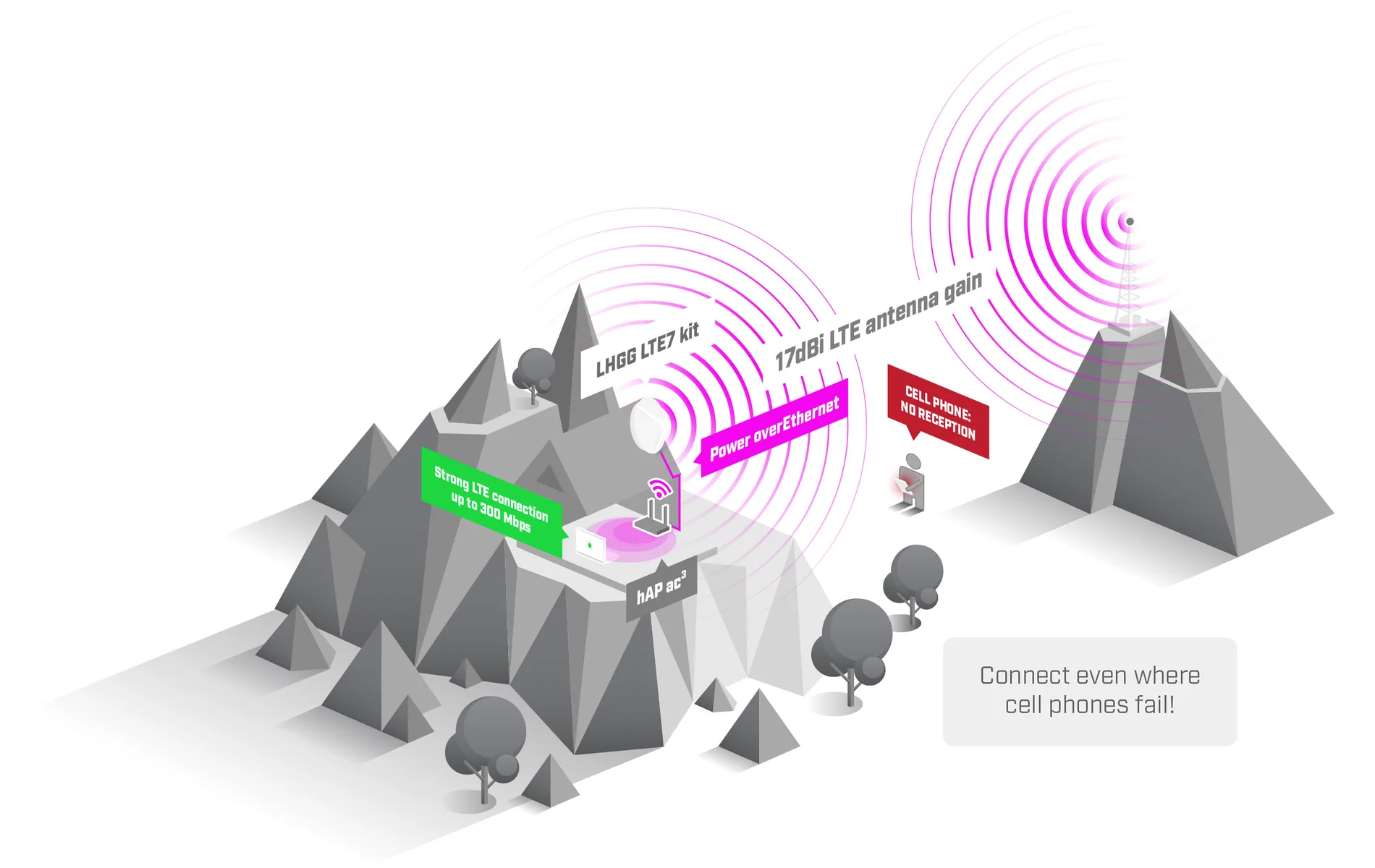

The LHGG LTE7 kit is designed for reliable “last mile” Internet access in remote locations. Mount it outdoors on a pole or mast and connect even where cell phones fail. Equipped with a high-gain 17 dBi directional antenna and a CAT7 LTE modem with up to 100 Mbps upload speed, it delivers stronger performance and better responsiveness in rural and high-demand environments. The doubled uplink capacity makes it better suited for video surveillance, VPN, remote work, and multi-user rural deployments.
“Must have been the wind!” –
not a problem for LHGG!

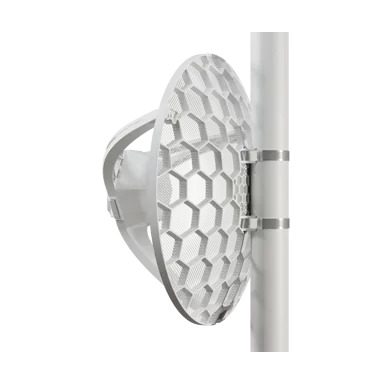

The lightweight grid antenna design reduces wind load while maintaining high gain. And it can be mounted in different ways, including poles and masts. A durable enclosure and operating temperature range from -40°C to +70°C ensure reliable performance in demanding climates. Finally, a massive heat sink keeps the system stable even under continuous load.
Don’t wait for the cable networks to reach you – choose the LHGG LTE7 kit and always stay connected!
Specification
- Product code LHGGR&R11e-LTE7
- Suggested price $169.00
- Architecture ARM 64bit
- CPU 88F3720
- CPU core count 2
- CPU nominal frequency 800 MHz
- CPU Threads count 2
- RouterOS license 3
- Operating System RouterOS v7
- Size of RAM 256 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 8 W
- Max power consumption without attachments 8 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-57 V
- 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
-
3G bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
- LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
- MIMO DL 2x2
- MIMO UL 1x1
-
LTE FDD bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
-
LTE TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
- TAC 35312597
- 10/100/1000 Ethernet ports 1
- Number of SIM slots 1 Modem (Micro SIM)
- MiniPCI-e slots 1
- Mode button Yes
- Certification CE, EAC, ROHS
- IP 54
