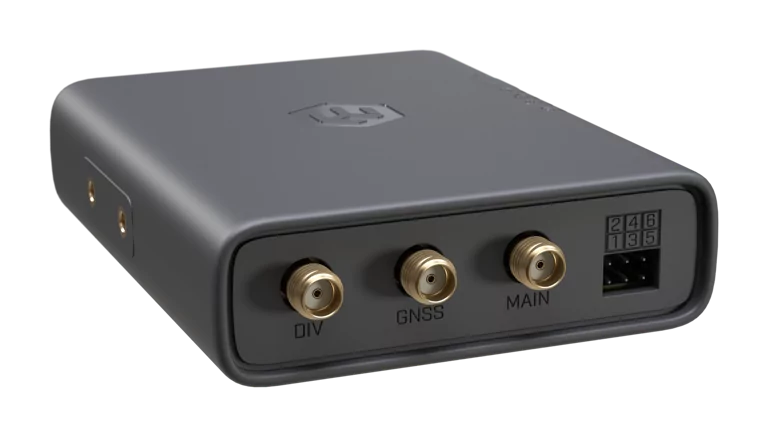

KNOT Embedded LTE4 Global
KNOT Embedded LTE4 is now available in a Global (EG25-G) version with expanded LTE band support for North America and other international markets. Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines – perfect for all kinds of industrial automation.

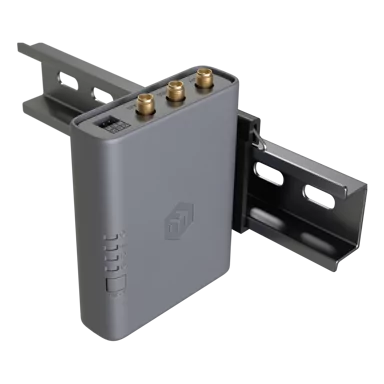

KNOT Embedded LTE4 Global is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
The built-in Bluetooth scanner supports Long Range Bluetooth and Extended Advertising, enabling reliable communication with MikroTik Bluetooth tags and other BLE sensors. Gather telemetry, track assets, and securely transmit data over LTE from a single compact device.
Use it as a primary gateway, a backup link, or an IoT data collection node – everything is powered by RouterOS for maximum flexibility.
MikroTik Connectivity is available
for the USA region
One simple plan provides dual-operator access via AT&T and US Cellular for reliable nationwide coverage. Data plans follow the same pricing structure as our EU Connectivity offer.
With MikroTik eSIM, you can activate a data plan directly from your MikroTik account and get online within minutes. No physical SIM cards, no carrier contracts, no activation delays. Ideal for IoT deployments, remote installations, backup connectivity, and low-usage setups where fast and simple deployment matters.
Sensor-ready GPIO header
For simple automation and monitoring (Digital input/Analog Input/OD output). All pins are 24V tolerant.
Powered by RouterOS
Full networking stack, VPNs, firewall, SMS control and notifications, automation, remote management, and so much more!
* The unit requires external antennas – choose the models that match your environment and customize the KNOT to your specific needs.
KNOT Embedded LTE4
is made for environments where space is limited but reliability is critical
Whether you’re building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It’s easy to integrate, easy to deploy, and built to perform in harsh environments – from smart city deployments to industrial automation and mobile tracking.
Specification
- Product code EG25-G&KNe
- Suggested price $89.00
- Architecture ARM 32bit
- CPU Unknown
- CPU core count 1
- CPU nominal frequency 800 MHz
- RouterOS license 3
- Operating System RouterOS v7
- Size of RAM 256 MB
- Storage size 256 MB
- Storage type NAND
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 2 (PoE-IN, USB-C)
- Max power consumption 6 W
- Max power consumption without attachments 6 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-57 V
- USB C input Voltage 5 V
- 2G Category Class12
-
2G bands
3 (1800MHz)
8 (900MHz)
2 (1900MHz)
5 (850MHz)
- 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
-
3G bands
1 (2100MHz)
5 (850MHz)
8 (900MHz)
2 (1900MHz)
4 (1700MHz)
6 (850 MHz)
19 (800 MHz)
- LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
- MIMO DL 2x2
- MIMO UL 1x1
-
LTE FDD bands
1 (2100MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900 MHz)
20 (800MHz)
2 (1900MHz)
4 (1700MHz)
12 (700MHz)
13 (700 MHz)
18 (800 MHz)
19 (800 MHz)
25 (1900MHz)
26 (850MHz)
28 (700MHz)
-
LTE TDD bands
38 (2600MHz)
40 (2300MHz)
41 (2500MHz)
39 (1900MHz)
- TAC 01673800
- 10/100/1000 Ethernet ports 1
- Number of 1G Ethernet ports with Reverse PoE (PoE-in) 1
- Number of SIM slots 1 Modem (Nano SIM)
- CPU temperature monitor Yes
- PCB temperature monitor Yes
- Bluetooth version 5.1
- eSIM Yes
- Certification CE, FCC, IC, EAC, ROHS
- IP 20
| EG25-G&KNe | EG25-G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 80.2 | 973.9 | 217.4 | 890.5 | 222 | 113.7 |
| Bridging | 25 bridge filter rules | 67.5 | 819.7 | 68.5 | 280.6 | 69.3 | 35.5 |
| Routing | none (fast path) | 80.2 | 973.9 | 226.1 | 926.1 | 233.8 | 119.7 |
| Routing | 25 simple queues | 66.3 | 805.1 | 66.8 | 273.6 | 75.1 | 38.5 |
| Routing | 25 ip filter rules | 47.5 | 576.8 | 47.5 | 194.6 | 47.5 | 24.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
